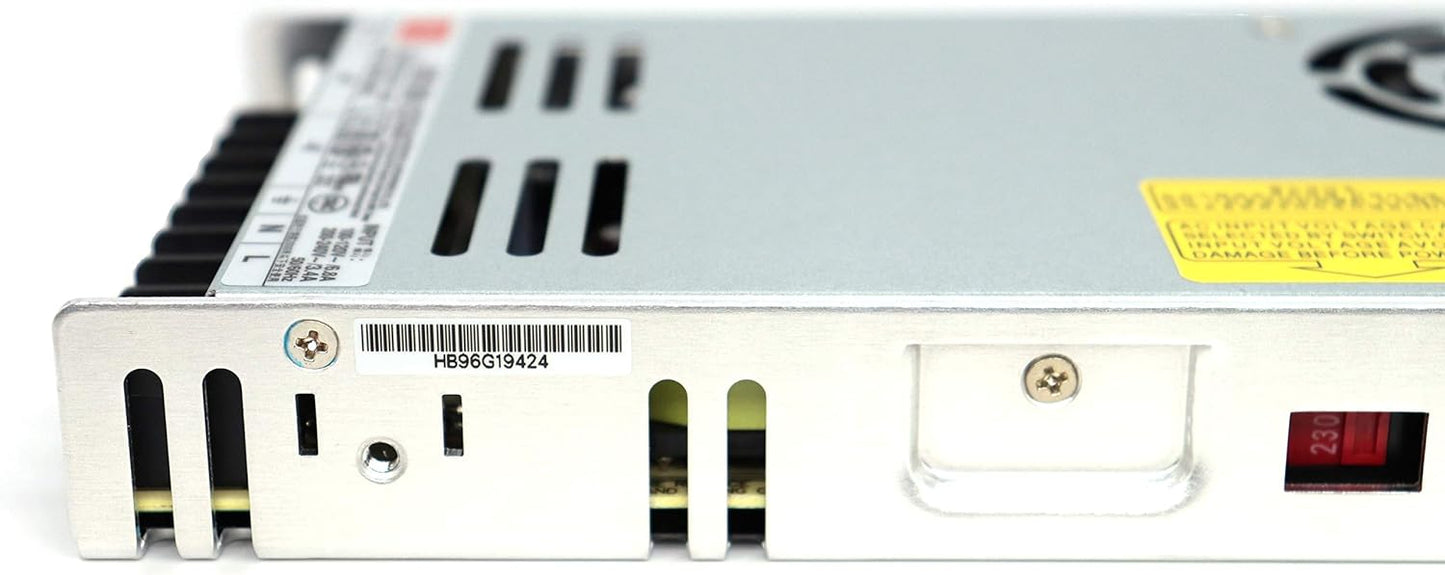

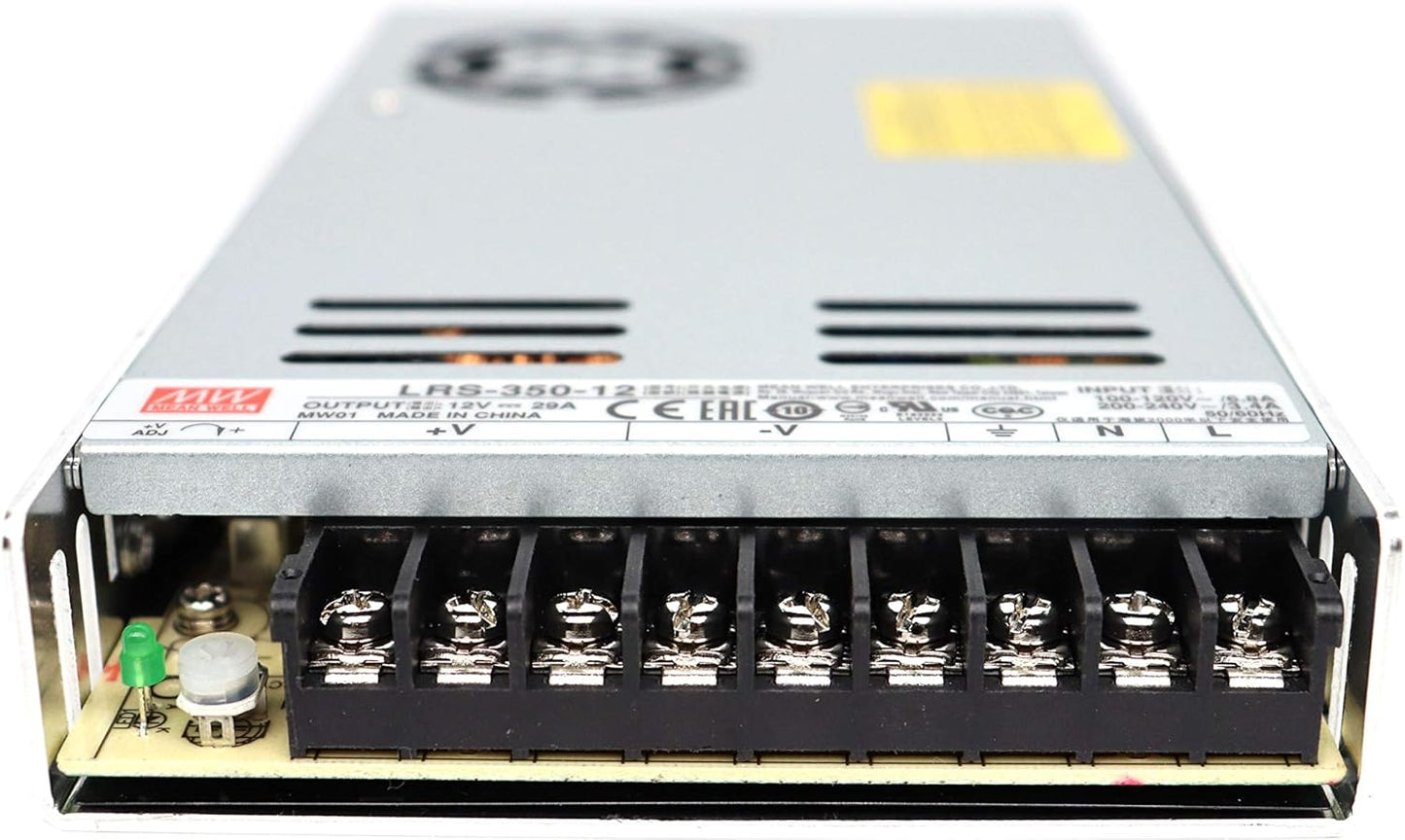

Mean Well LRS-350-12 AC/DC Switching Power Supply 348W 12V 29Amp Single Output
Mean Well LRS-350-12 AC/DC Switching Power Supply 348W 12V 29Amp Single Output
Regular price
$48.00 CAD
Regular price
Sale price
$48.00 CAD
Unit price
/
per
Couldn't load pickup availability
| Power source | AC |
| Mounting type | Screw Mount |
| Current rating | 29 Amps |
| Maximum frequency | 63 Hz |
| Minimum frequency | 47 Hz |
| Specification met | CE, UL |
| UPC | 645312123346 |
| Manufacturer | MEAN WELL ENTERPRISES CO., LTD. |
About this item
- Output Voltage: 12V; Rated Current & Rated Power: 29A, 348W
- Input Voltage Range: 90 ~ 132VAC / 180 ~ 264VAC by Switch; Input Switch Default On 115VAC
- UL and CE Certificated; Ripple & Noise (max.): 150mVp-p (measured at 20MHz of bandwidth by using 12” twisted pair-wire terminated with 0.1uf & 47uf parallel capacitor)
- Built-in cooling FAN ON-OFF control, RTH3 Reaches 50℃, FAN ON, Under 40℃, FAN OFF
- Full Protections: Short Circuit / Overload / Over Voltage /Over Temperature
